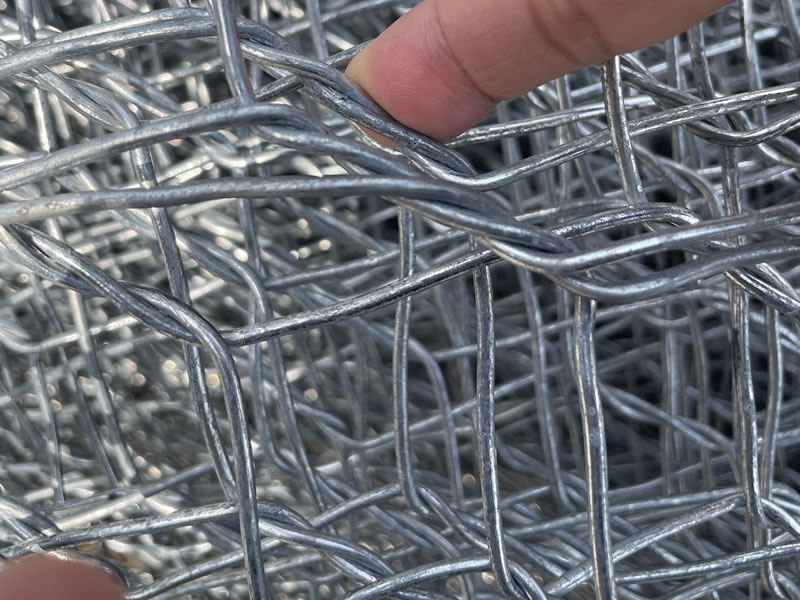

Woven gabion box is produced from double-twisted hexagonal steel wire mesh using galvanized or PVC-coated wire. It is classified by mesh opening, wire diameter, and zinc coating weight. Woven gabion boxes offer flexibility and tensile strength, allowing deformation without failure. They are commonly used for riverbank protection, erosion control, slope stabilization, embankments, coastal defense, and hydraulic engineering works where ground movement and long-term durability are required.

Specifications

• Materials: Low-carbon steel wire with galvanized, Galfan, or PVC coating.
• Wire diameter 2.0–4.0 mm
• Mesh Opening Size: 60 × 80 mm to 100 × 120 mm hexagonal mesh, common 80 × 100 mm.
• Box Dimensions: Length 1.0–4.0 m, width 0.5–2.0 m, height 0.3–1.0 m.
• Selvedge Wire Diameter: 0.5–1.0 mm thicker than body wire, typically 2.7–4.5 mm.
• Wire Tensile Strength: 350–550 MPa.
• Zinc Coating Weight: 220–275 g/m² galvanized coating.
• PVC Coating Thickness: 0.5–0.8 mm PVC layer.
• Processing Methods: Wire drawing, coating, double twisting, cutting, folding, bundling.
• Lacing Wire Diameter: 2.0–2.4 mm for assembly.
• Stone Fill Size: Recommended 100–200 mm stone.
• Service Temperature Range: –30 °C to +70 °C.
• Applications: Riverbanks, erosion control, slopes, embankments, retaining and hydraulic works.
