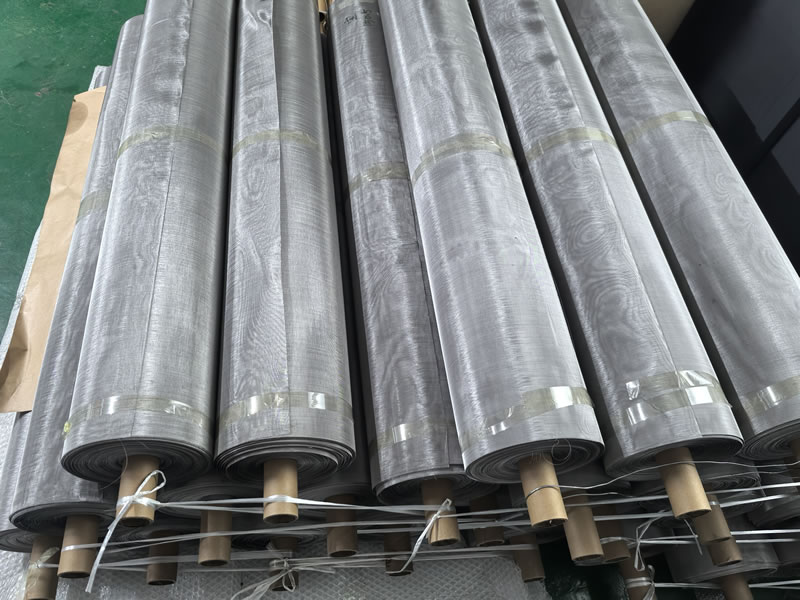

Stainless steel wire mesh is produced from stainless steel grades such as 304, 316, or 316L, using woven or welded processes. It is classified by weave type, including plain weave, twill weave, and Dutch weave. Stainless steel wire mesh is used for filtration, screening, separation, protection, and reinforcement. It offers corrosion resistance, high strength, and uniform openings, making it suitable for chemical processing, food production, pharmaceuticals, water treatment, and industrial screening applications.

Specifications

• Materials: AISI 304, 304L, 316, 316L stainless steel.
• Mesh Count Range: 1 × 1 to 500 × 500 mesh for screening and filtration.
• Wire Diameter: 0.025–2.0 mm depending on mesh type and strength.
• Opening Size: Approximately 0.02–20 mm aperture range.
• Weave Types: Plain weave, twill weave, plain Dutch weave, twill Dutch weave.
• Roll Width: 0.6–1.5 m standard, up to 2.0 m custom.
• Roll Length: 10–30 m typical roll lengths.
• Processing Methods: Wire drawing, weaving or welding, cutting, flattening, edge trimming.
• Surface Condition: Bright, pickled, or annealed finish.
• Filtration Accuracy: 5–5,000 microns depending on weave.
• Temperature Resistance: –200 °C to +600 °C.
• Applications: Filtration, screening, chemical, food, pharmaceutical, water treatment, protection, architecture.
