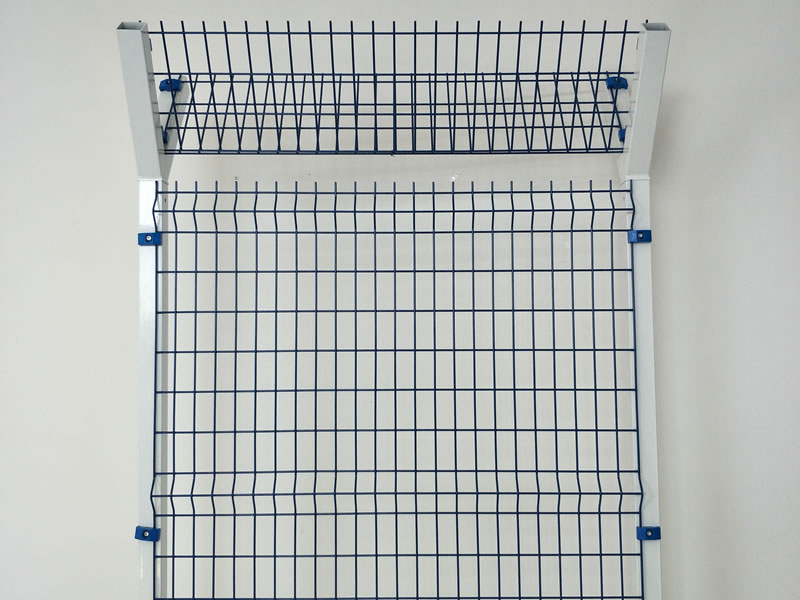

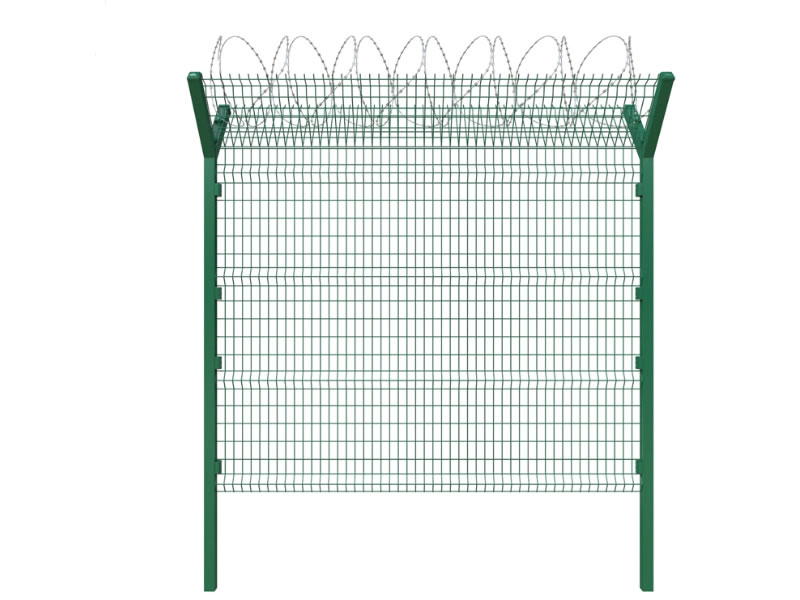

Airport Fence is a high security perimeter fencing system manufactured from high tensile steel wire and steel posts with hot dipped galvanized or powder coated finishes for corrosion resistance. Classified as an aviation perimeter security fence, it commonly integrates welded mesh panels with Y shaped or V shaped arms for barbed or razor wire. Airport Fence is widely used for airports, runways, restricted zones, terminals, and transportation infrastructure requiring controlled access, high visibility, and reliable long term protection.

Specification

• Material: High tensile carbon steel wire and steel posts, typically Q195 or Q235 grade.
• Wire Diameter: Common mesh wire diameters range from 4.0 mm to 6.0 mm.
• Mesh Opening Size: Standard apertures include 50 × 150 mm, 50 × 200 mm, or 76.2 × 12.7 mm.
• Panel Width: Typical panel widths range from 2000 mm to 3000 mm.
• Panel Height: Fence heights range from 1800 mm to 3000 mm, up to 6000 mm with razor wire arms.
• Manufacturing Process: Produced by automatic resistance welding for consistent strength.
• Surface Treatment: Hot dipped galvanized 60–275 g/m² or powder coated 60–120 μm.
• Post Type and Size: Square or rectangular posts, commonly 80 × 80 mm or 100 × 100 mm.
• Post Spacing: Post centers generally range from 2000 mm to 3000 mm.

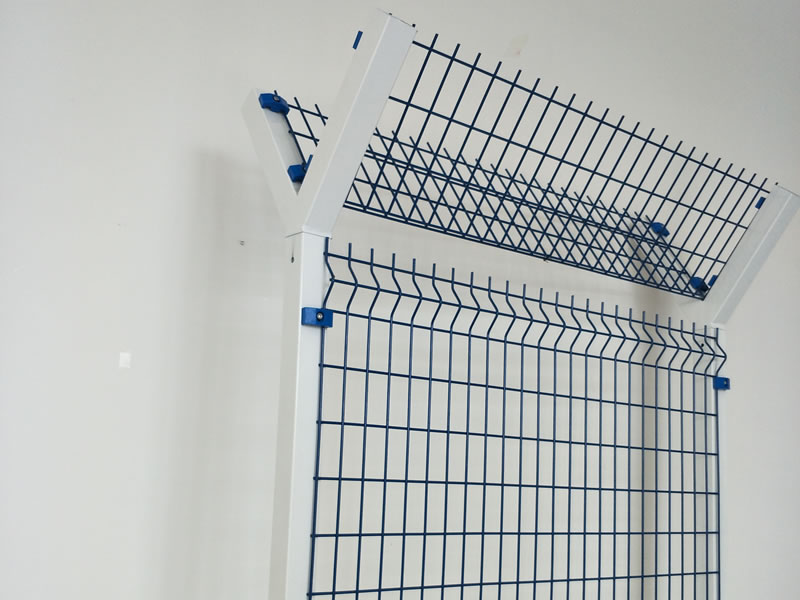

• Security Arm Configuration: V-shaped or Y-shaped arms angled 30°–45° for barbed or razor wire.
