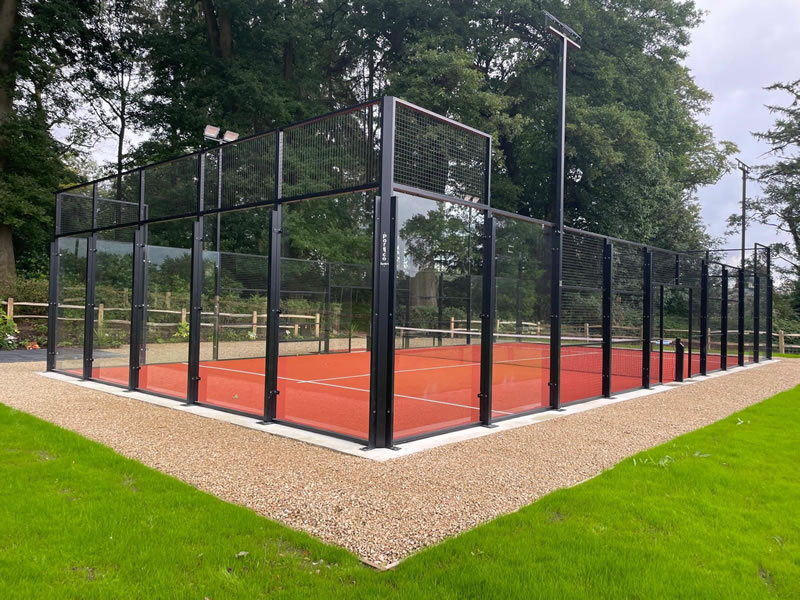

Padel Court is a modular sports enclosure system constructed from galvanized steel structures, tempered glass panels, and welded wire mesh. Classified as a padel tennis sports facility, it is designed to meet international padel standards. Padel Courts are widely used in sports clubs, fitness centers, schools, and recreational complexes, offering durability, player safety, controlled ball rebound, and long-term outdoor performance.

Specifications

• Court Dimensions: Standard size 10 m × 20 m for doubles padel courts.
• Overall Height: Total enclosure height typically ranges from 3.0 m to 4.0 m.
• Glass Thickness: Tempered glass panels usually 10 mm or 12 mm thick.
• Steel Post Size: Common post sections include 80 × 80 mm or 100 × 100 mm.
• Steel Thickness: Frame thickness generally ranges from 2.5 mm to 4.0 mm.

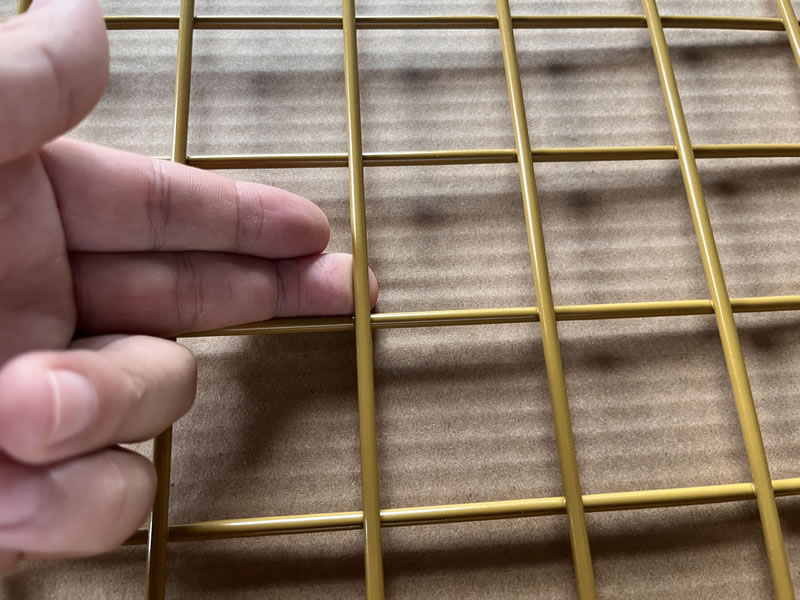

• Mesh Opening Size: Welded mesh apertures typically 40 × 40 mm to 50 × 50 mm.
• Net Height: Net height 880 mm at center and 920 mm at sides.
• Lighting Height: Lighting poles typically range from 6 m to 8 m.
• Surface Coating: Hot dipped galvanized 60–275 g/m² plus powder coating 80–120 μm.
• Foundation Depth: Concrete foundation depth usually ranges from 300 mm to 500 mm.
