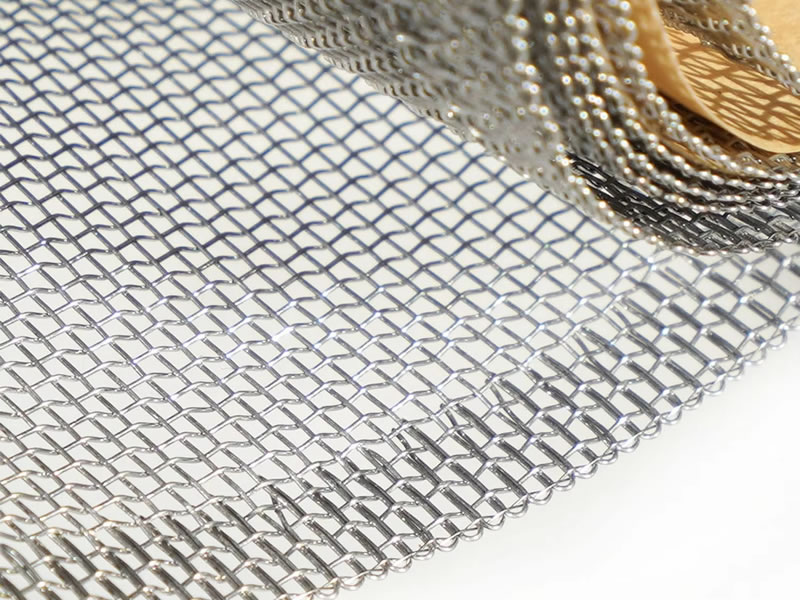

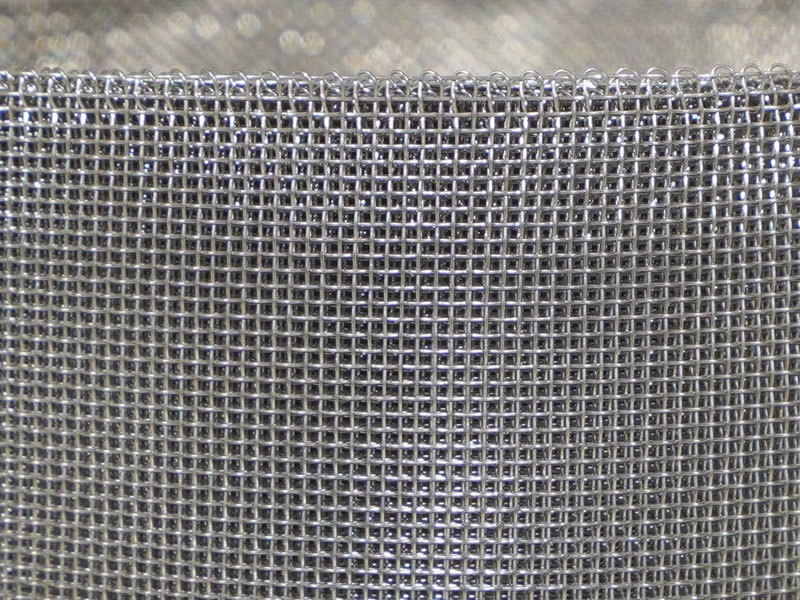

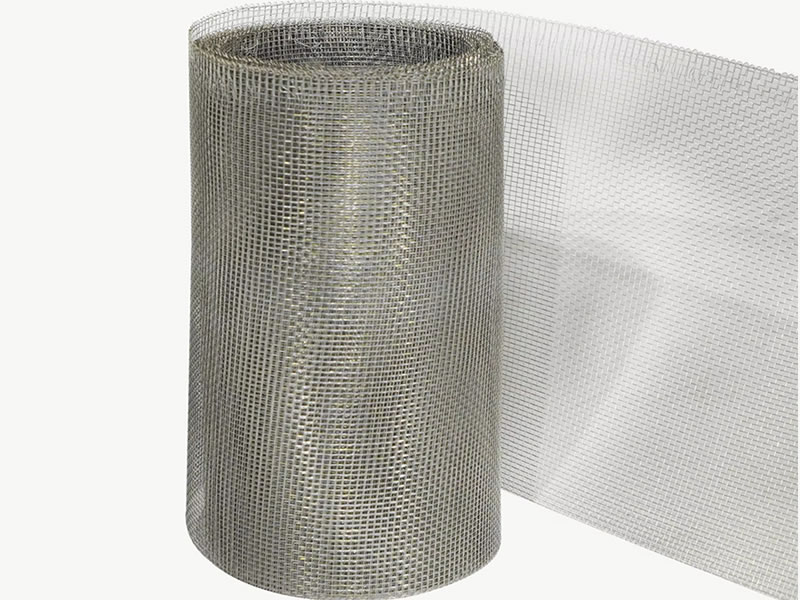

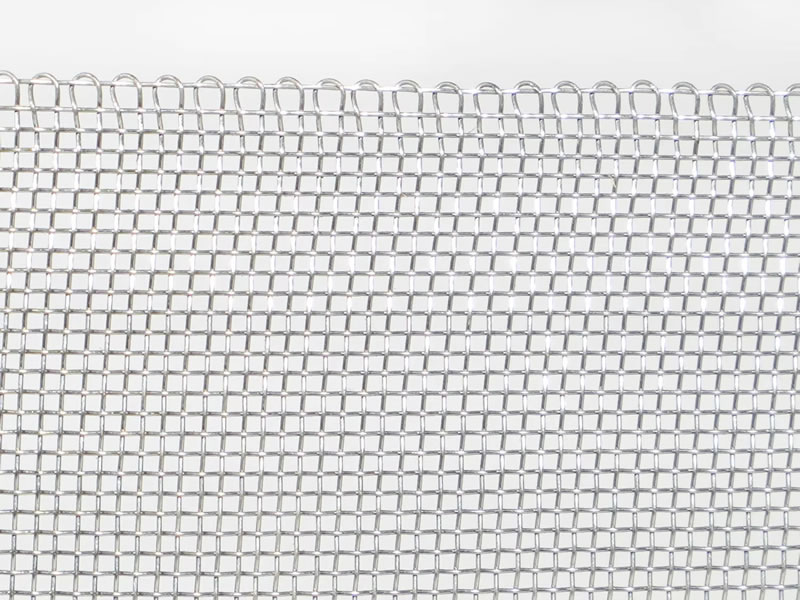

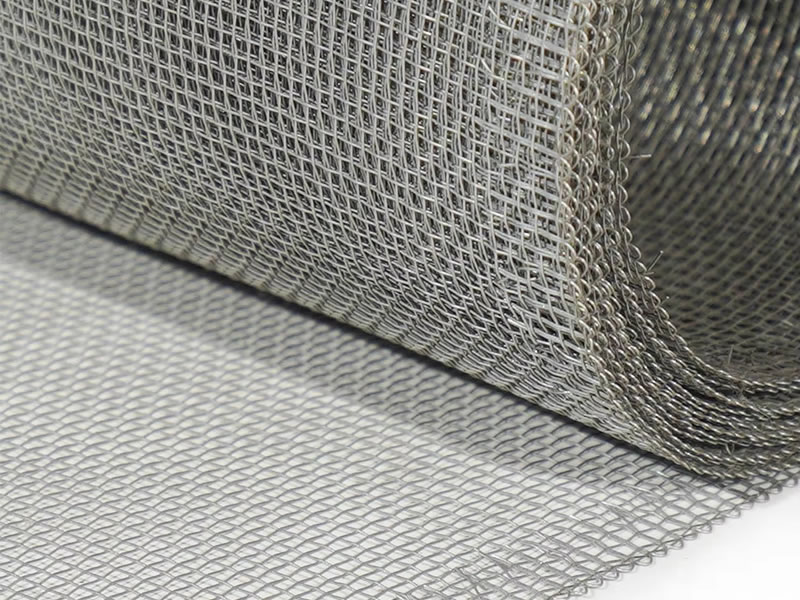

Galvanized square window screen is made from low-carbon steel wire coated with zinc through hot-dipped or electro-galvanizing processes. It is classified by mesh size, wire diameter, and coating method. This window screen is used for insect protection, ventilation, and debris control in windows, doors, and vents. Galvanized square window screen provides durability, corrosion resistance, and stable structure, making it suitable for residential buildings, agricultural facilities, warehouses, and industrial ventilation systems.

Specifications

• Materials: Low-carbon steel wire with zinc coating.
• Mesh Count Range: 14 × 14 to 18 × 18 mesh.
• Wire Diameter: 0.18–0.30 mm, common 0.20 mm, 0.22 mm, 0.25 mm.
• Opening Size: Approximately 0.8–1.5 mm square openings.
• Weave Type: Plain weave square mesh structure.
• Roll Width: 0.6–1.5 m standard widths.
• Roll Length: 10 m, 20 m, 30 m per roll.
• Zinc Coating Weight: 30–80 g/m² galvanized layer.
• Processing Methods: Wire drawing, weaving, galvanizing, cutting, edge trimming.
• Surface Condition: Bright galvanized or dull galvanized finish.
• Service Temperature Range: –20 °C to +80 °C.
• Applications: Windows, doors, vents, insect protection for residential and industrial use.
