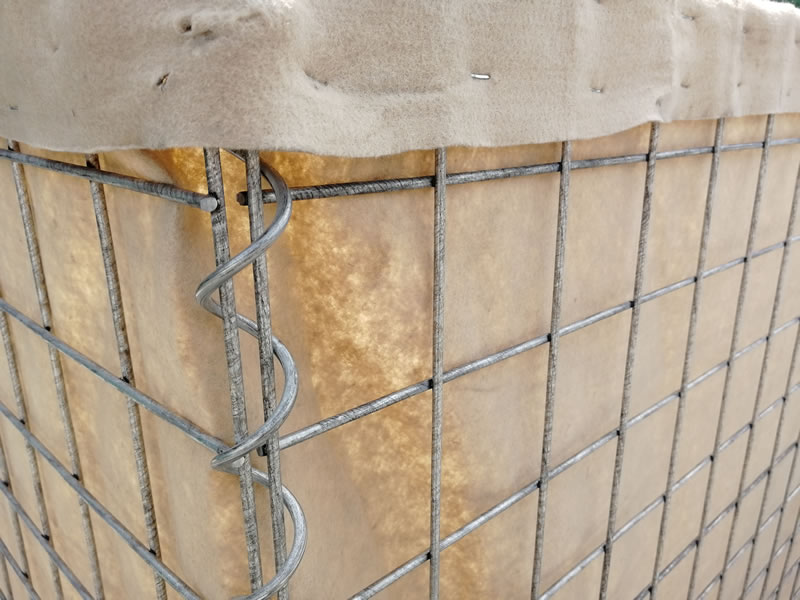

Defensive barrier is a prefabricated modular system made from welded wire mesh panels combined with heavy-duty geotextile liners. It is classified by unit height, width, and liner material. Filled with sand, soil, or gravel, defensive barriers are used for military defense, flood control, perimeter security, blast protection, and temporary retaining structures. Their rapid deployment, reusability, and high load resistance make them suitable for emergency response and infrastructure protection projects.

Specifications

• Materials: Galvanized welded steel wire mesh with polypropylene geotextile liner.
• Mesh Opening Size: 50 × 50 mm to 76 × 76 mm welded mesh.
• Unit Height: 0.6–2.7 m, common 1.0 m, 1.4 m, 2.1 m.
• Unit Width: 0.6–1.5 m standard widths.
• Unit Length: 1.0–10.0 m depending on barrier type.
• Wire Diameter: 4.0–6.0 mm steel wire.
• Zinc Coating Weight: 40–275 g/m² galvanized coating.
• Geotextile Weight: 250–350 g/m² nonwoven fabric.
• Processing Methods: Wire drawing, mesh welding, galvanizing, cutting, liner sewing, assembly.
• Fill Material Size: Sand, soil, gravel, stone, particle size 0–150 mm.
• Service Temperature Range: –30 °C to +60 °C.
• Applications: Military defense, flood control, perimeter security, blast and temporary protection.
