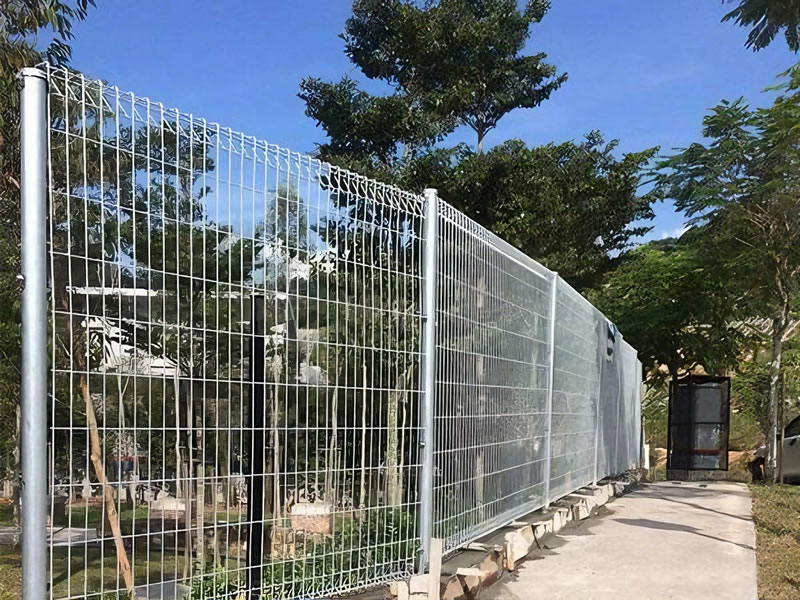

BRC Fence is a welded roll top mesh fencing system manufactured from high tensile steel wire with hot dipped galvanized or powder coated finishes for corrosion resistance. Classified as a roll top and bottom safety fence, it features folded edges for rigidity and user protection. BRC Fence is widely used for residential areas, schools, parks, playgrounds, commercial properties, and public infrastructure, offering durable, low maintenance, and cost effective perimeter security solutions.

Specifications

• Panel Width: 2.0 m–3.0 m standard, with 2.4 m most commonly used.
• Panel Height: 900 mm–2400 mm, including 900, 1200, 1500, 1800, 2100, and 2400 mm.
• Mesh Opening: Typical apertures are 50 × 150 mm or 50 × 200 mm for safety and visibility.
• Wire Diameter: Common wire sizes range from 4.0 mm to 6.0 mm, usually 4.5 mm or 5.0 mm.
• Edge Type: Rolled top and bottom edges with roll diameters of approximately 30–50 mm.
• Post Size: Standard post sections include 60 × 60 mm, 80 × 80 mm, or 60 × 40 mm.
• Post Spacing: Post centers generally match panel width at 2.0 m–3.0 m.
• Surface Treatment: Hot dipped galvanized 60–275 g/m² or powder coated 60–120 μm thickness.
• Fixing Method: Steel clips or clamp bars secured with M8 or M10 anti-tamper bolts.
• Color Options: Common colors include RAL 6005 green, RAL 9005 black, RAL 9010 white, and custom RAL.
