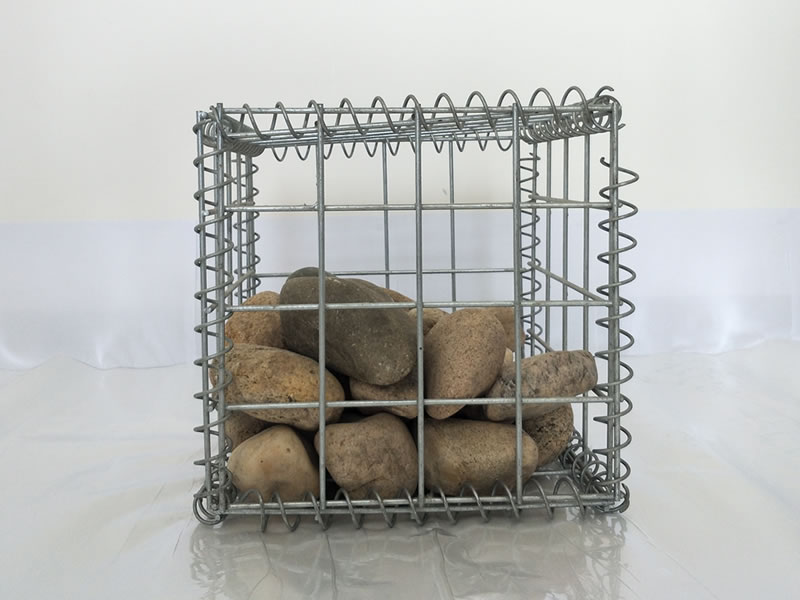

Welded gabion box is manufactured from welded steel wire mesh panels made of galvanized or PVC-coated low-carbon steel wire. It is classified by mesh size, wire diameter, and panel dimensions. Welded gabion boxes provide rigid structure and precise geometry, making them suitable for retaining walls, slope protection, landscaping, noise barriers, and architectural features. Their high strength, corrosion resistance, and ease of installation make them widely used in civil engineering, road construction, river control, and urban infrastructure projects.

Specifications

• Materials: Low-carbon steel or stainless steel wire (Q195/Q235).
• Mesh Opening Size: 50 × 50 mm to 100 × 100 mm, common 50 × 100 mm, 75 × 75 mm.
• Panel Dimensions: Length 1.0–2.0 m, width 0.5–1.0 m, height 0.3–1.0 m.
• Wire Diameter: 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm.
• Zinc Coating Weight: 40–275 g/m² galvanized layer.
• PVC Coating Thickness: 0.4–0.6 mm PVC coating.
• Tensile Strength: 350–550 MPa steel wire strength.
• Processing Methods: Wire drawing, mesh welding, cutting, galvanizing or PVC coating, assembly.
• Connection Methods: Spiral binders, C-rings, or lacing wire 3.0–4.0 mm.
• Stone Fill Size: Recommended 60–150 mm stone.
• Service Temperature Range: –30 °C to +70 °C.
• Applications: Retaining walls, slope protection, landscaping, riverbanks, noise barriers, structures.
