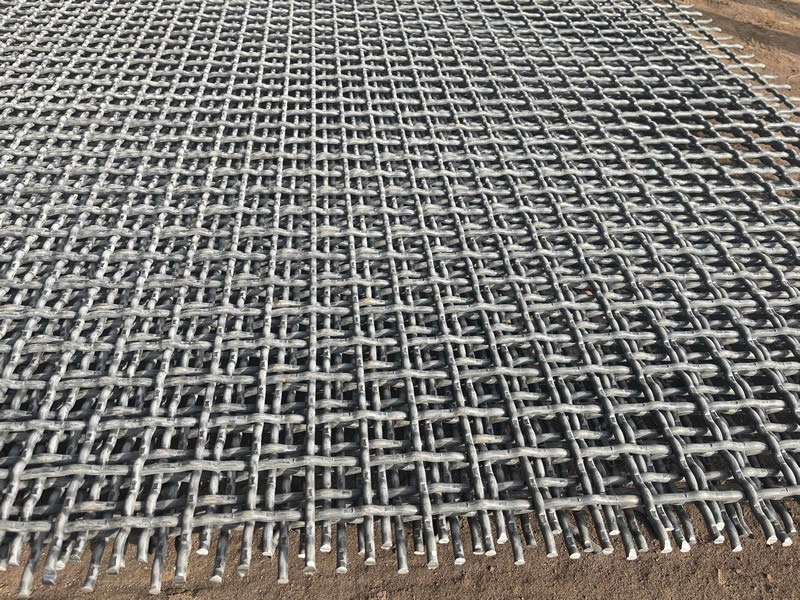

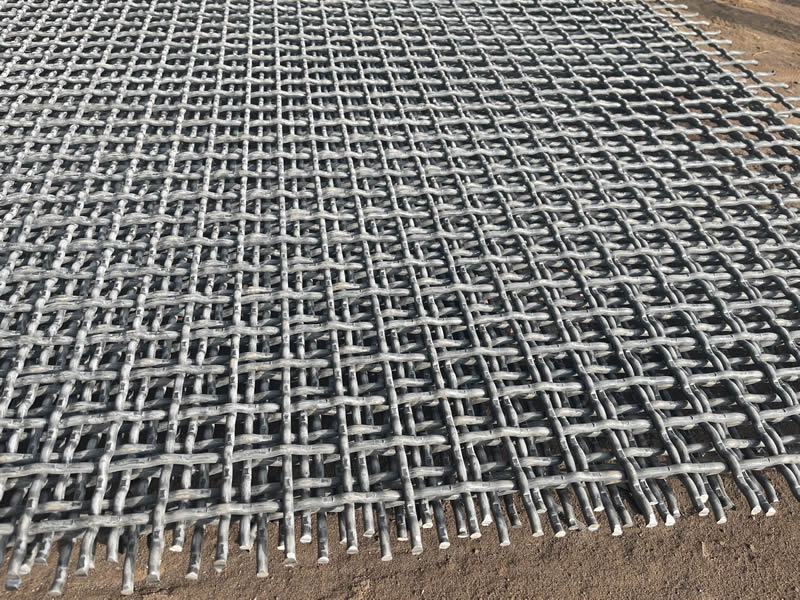

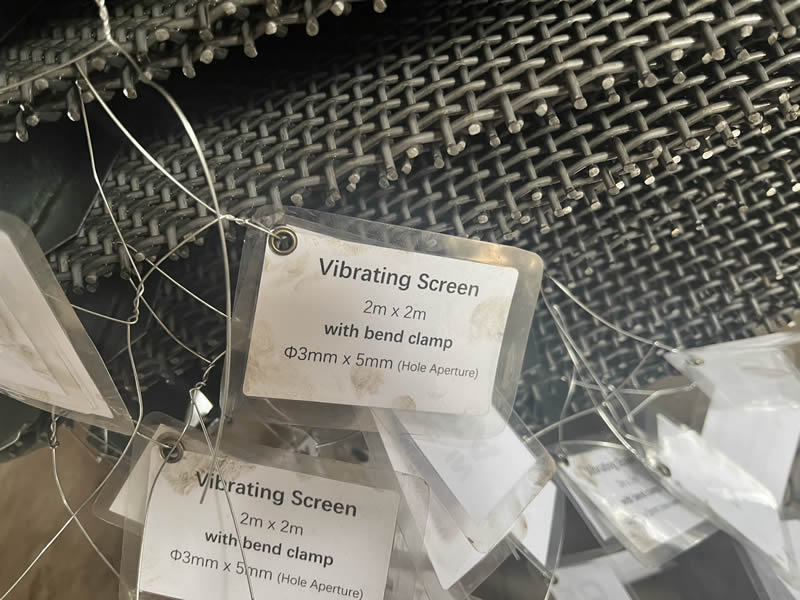

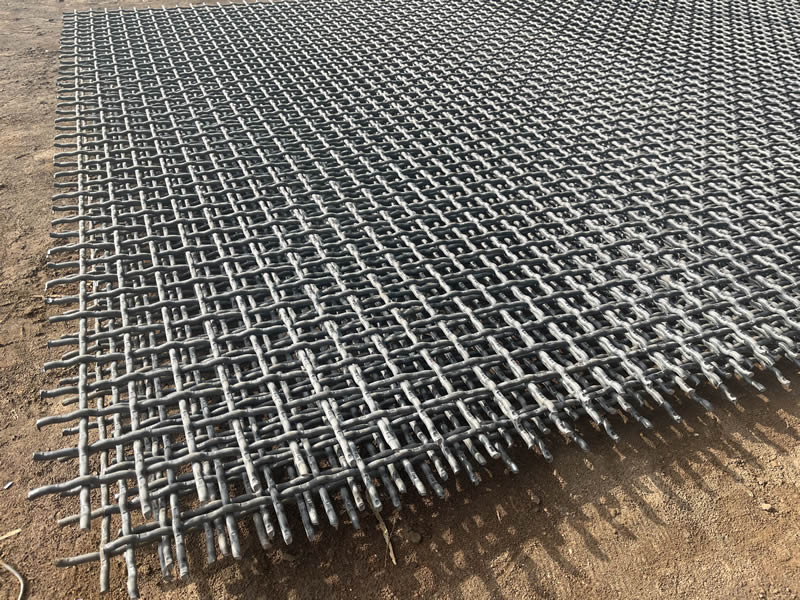

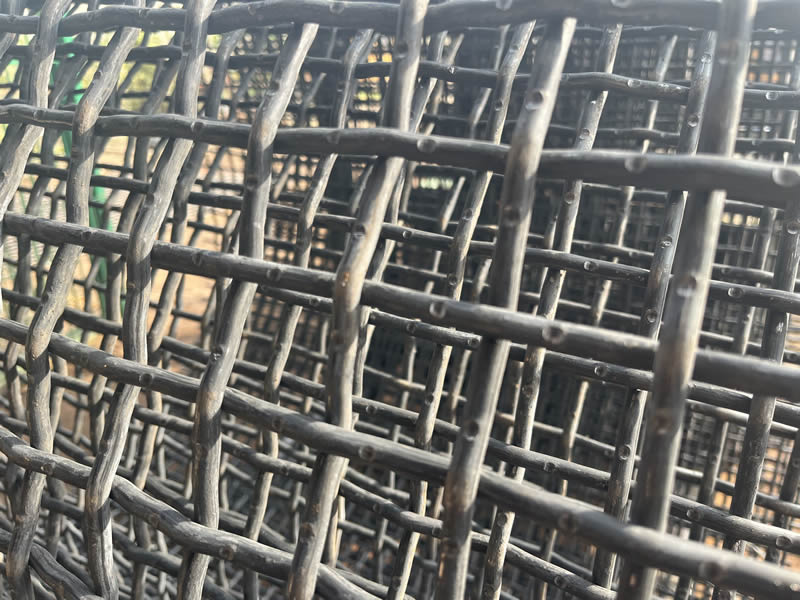

Vibrating screen is manufactured from high-carbon steel, manganese steel, or stainless steel wire that is pre-crimped before weaving to ensure stable openings and high strength. It is classified by crimping type, mesh size, wire diameter, and screen deck application. This vibrating screen mesh is widely used for material screening, sizing, and grading in mining, quarrying, aggregates, coal, metallurgy, and construction industries. It offers wear resistance, accurate separation, high load capacity, and long service life under continuous vibration conditions.

Specifications

• Materials: High-carbon steel, 65Mn spring steel, or stainless steel 304/316.
• Mesh Opening Size: 2–120 mm screening apertures.
• Wire Diameter: 1.0–12.0 mm depending on load and wear.
• Weave and Crimp Type: Double crimp, intermediate crimp, flat top crimp, lock crimp.
• Panel Width: 500–2,200 mm.
• Panel Length: 1,000–4,000 mm.
• Open Area Percentage: Approximately 30–80%.
• Tensile Strength: 900–1,800 MPa steel wire.
• Processing Methods: Wire drawing, pre-crimping, weaving, heat treatment, cutting, finishing.
• Edge Treatment: Plain cut, hooked edges, or bolted edges.
• Service Temperature Range: –40 °C to +400 °C.
• Applications: Mining, quarrying, aggregates, coal, metallurgy, construction material screening.
